widget:type
widget:type Directive Reference
The widget:type directive in the fields.ini file specifies the type of widget that should be used to edit a particular field in HTML forms. Xataface uses HTML_QuickForm for its form generation so theoretically any widget supported by HTML_QuickForm should work with Xataface.
Available Widget Types
| Name | Description | Version |
|---|---|---|
| advmultiselect | Two select lists with add/remove buttons. Selected items appear in the right select list. Options may be selected from the left select list. | 1.0 |

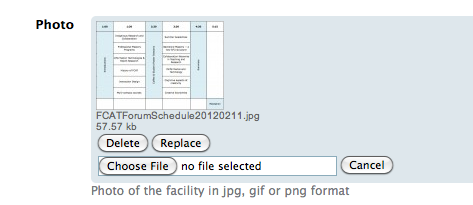

| ajax_upload | File upload widget that uses AJAX to perform uploading with progress indicator.  |
2.0 and ajax_upload module |
| autocomplete | An autocomplete. text field. This is not to be confused with the yui_autocomplete widget. The main difference is that this widget does not provide a drop-down list of possibilities, it just tries to complete what the user is typing inside the text field based on a valuelist. | all |

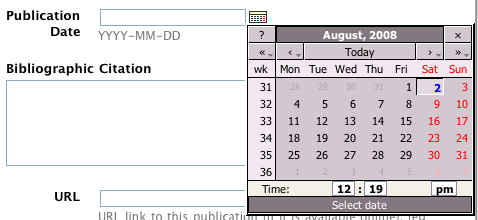

| calendar | A DHTML pop-up calendar to select the date.  |
0.5.3 |

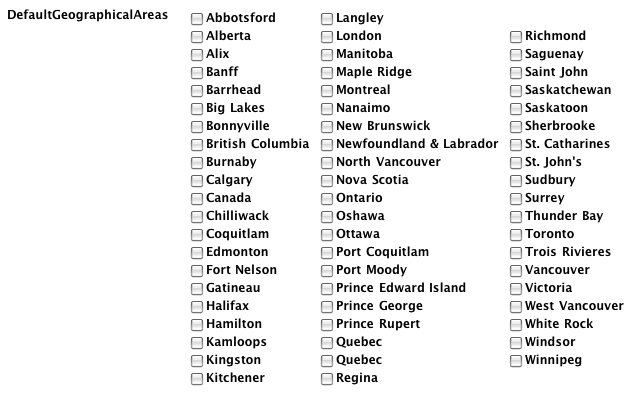

| checkbox | A checkbox or checkbox group. Example 1: Checkbox as boolean on Tinyint field.  Example 2: Checkbox group to allow multiple selections.  |
all |

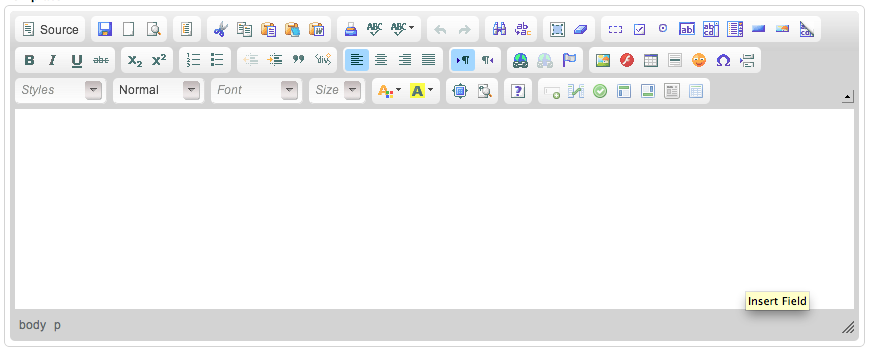

| ckeditor | A WYSIWYG HTML editor widget for use in Xataface 2.0 or higher. This is meant to replace the older FCKeditor and TinyMCE editor widgets.  |
2.0 and ckeditor module |
| date | Select lists for month, year, day, hour, etc… | all |

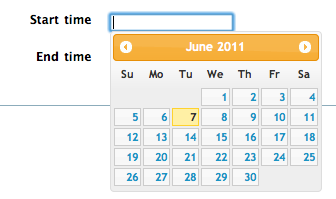

| datepicker | Alternate jQuery widget for selecting dates.  |
2.0 and datepicker module |
| datetimepicker | Alternate jQuery widget for selecting dates/times. (This photo is of the datepicker widget… datetimepicker is similar but has time also). |
2.0 and datepicker module |

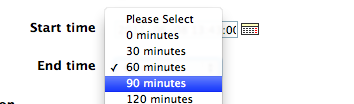

| durationselector | A special case date widget meant to be used in editing the “end time” of a datetime field as a duration relative to a start datetime field.  |
2.0 and durationselector module |

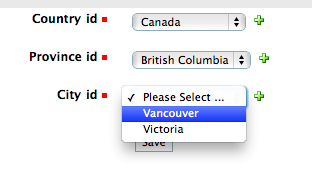

| depselect | A select list whose contents is dependent upon the current value of other fields in the form.  |
2.0 and depselect module installed |
| file | A file widget (default type for container fields and blob fields.  |
all |

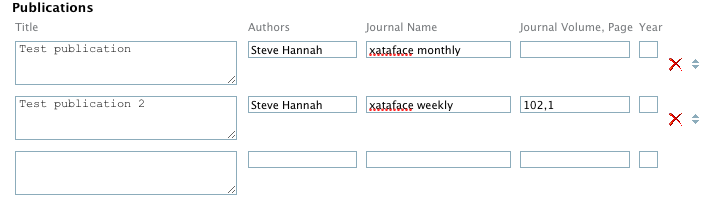

| grid | A grid widget for editing multiple rows of related records inside the edit form. Supports adding/removing/reordering. As of version 1.2.5, file uploads are not supported in the grid widget.  |
1.0 |

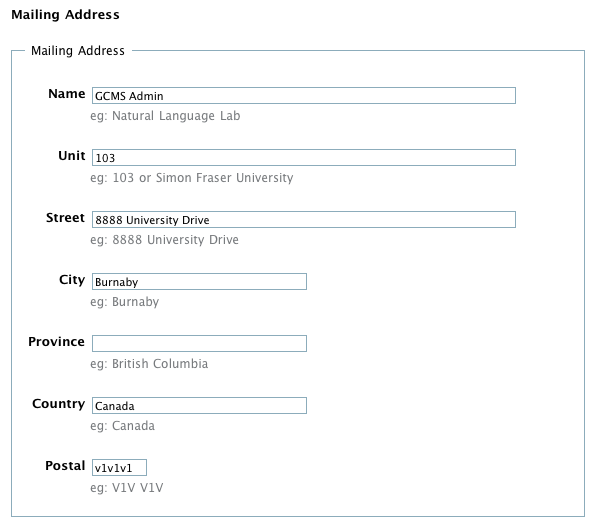

| group | A compound widget for editing multiple fields but storing the data in a single XML field.  |
all |
| hidden | A hidden field | all |

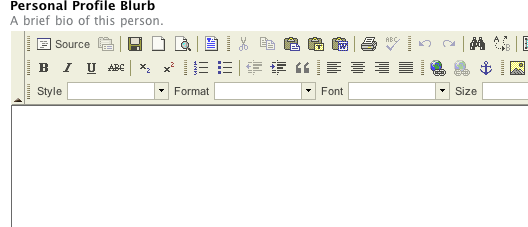

| htmlarea | A WYSIWYG (What you see is what you get) HTML editor. This defaults to FCKeditor, but TinyMCE is also supported.  |
all |
| lookup | A field that allows users to look-up a record from another table. THis is a good alternative to a select list. It doesn’t use a vocabulary, so this is appropriate when vocabularies would be unpractical (for large vocabularies). You do, however need to specify the widget:table directive for the field so that the lookup knows from which table to load the records.  |
1.2 |
| password | A password field.  |
all |

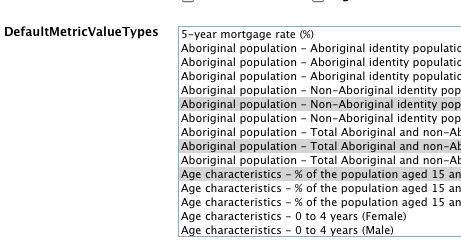

| select | A select list. Example 1: A single select.  Example 2: A multi-select. To use a multi-select, add repeat=1 to your fields.ini.  |
all |
| table | A compound widget for editing tabular data. This widget dictates the storage format as XML.  |
all |
| text | A text field  |
all |

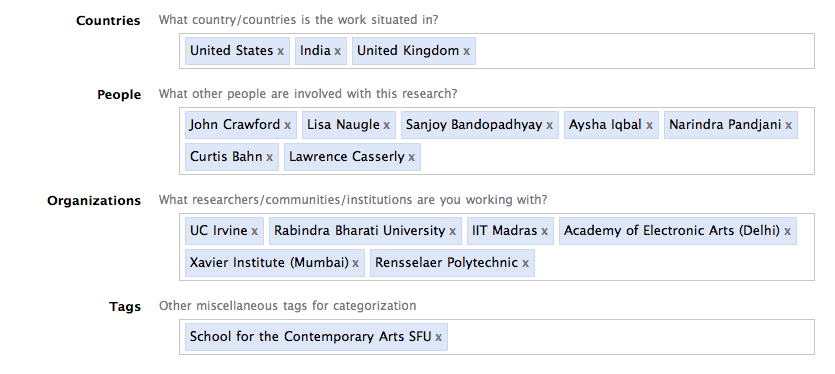

| tagger | A widget to add n:m related records to a relationship inside the edit form as tags.  |
2.0 and tagger module |
| textarea | A text area (multi-line text field)  |
all |
| time | A select list of times separated by a specified interval (default 30 minutes). | 0.7 |

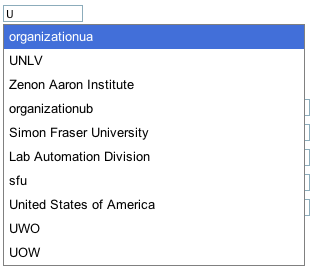

| yui_autocomplete | An autocomplete widget ported from the Yahoo UI Library.  Additional Directives - yui_autocomplete:maxResultsDisplayed : Set the maximum number of results to display at a time. Default is 10. (This directive available since 2.0.3 or SVN rev 4784 in trunk). |
1.0 |
