Xataface Depselect Module 0.1
Dependent Select List Widget for Xataface Forms
Xataface depselect Module

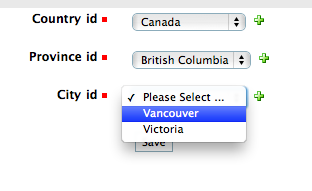

Screen%20shot%202011-06-09%20at%2011.11.34%20AM.png?max_width=640

Synopsis

The Xataface depselect module adds a "dependent select" widget for use in forms. A dependent select is one whose options are dependent on the state of other widgets in the form. It listens for changes to other selects and updates its own options accordingly.

A common example is a form with select lists for country, province, and city. The options in the "province" select list will depend on which option is selected in the "country" select list. Similarly the options in the "city" widget depend on the "province" selection. The depselect widget is ideal of this scenario as it will live update the options according to the selections in the dependency fields.

Features

Requirements

License

Xataface Depselect Module

Copyright (C) 2011  Steve Hannah <shannah@sfu.ca>

This library is free software; you can redistribute it and/or
modify it under the terms of the GNU Library General Public
License as published by the Free Software Foundation; either
version 2 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
Library General Public License for more details.

You should have received a copy of the GNU Library General Public
License along with this library; if not, write to the
Free Software Foundation, Inc., 51 Franklin St, Fifth Floor,
Boston, MA  02110-1301, USA.

Download

Packages

Not available.

SVN

http://weblite.ca/svn/dataface/modules/depselect/trunk

Installation

  1. Copy the summary directory into your modules directory. i.e.:
            modules/depselect

  2. Add the following to the [_modules] section of your app's conf.ini file:
            modules_depselect=modules/depselect/depselect.php

See also:
http://xataface.com/wiki/modules For more information about Xataface module development and installation.

Usage

To configure a field to use the depselect widget, just set its fields.ini file widget:type directive to "depselect". You should also set the following directives:

Directive Description
widget:tableThe name of the table from which the options should be pulled
widget:filters:xyzFilters to apply to queries to load the options. This can be any valid Xataface GET parameter in accordance with the Xataface URL conventions.
widget:keycol(Optional) The name of the column to treat as the id or key column.
widget:labelcol(Optional) The name of the column to pull labels from.
widget:ignore_permissions(Optional) The user needs 'view' permissions for the records from which the options are populated, unless this directive is set.

Examples:

In the following example we have a city field that is dependent on the province field that is dependent on the country field:

[country_id]
        widget:type=depselect
        widget:table=countries

[province_id]
        widget:type=depselect
        widget:table=provinces
        widget:filters:country_id="$country_id"

[city_id]
        widget:type=depselect
        widget:table=cities
        widget:filters:province_id="$province_id"
See also:
http://xataface.com/wiki/fields.ini_file For more information about fields.ini file directives.

More Reading

TBA

Support:

http://xataface.com/forum
